HD 3Gbps/155Mbps Bi-Di Asymmetry Transceiver Module

Product Description
F-tone’s FTTR-1XU9-20/40X HD series of transceiver modules are the perfect solution for High-speed communication networks.The transceiver modules may use different data rates (or data level) between transmitter and receiver, support data rates up to 3 Gbps. These modules are fully compliant with the Multi-sourced 1×9 protocol.
The FTTR-1XU9-20/40X series is high performance module for single fiber communications by using 1310nm/1550nm transmitter and 1550nm/1310nm receiver. The transmitter section uses a DFB (or FP) laser diode and is a class 1 laser compliant according to International Safety Standard IEC-825. The receiver section uses an integrated 1310 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A LVPECL/CML logic interface simplifies interface to external circuitry.

Product Features
● SMPTE 297-2006 Compatible
● 1-Fiber Bi-Directional 1×9 Optical Transceiver
● Speed from 155 Mbps to 3Gbps with up to 40 km Single-mode Fiber
● Support Video Pathological Patterns for SD-SDI,
● HD-SDI and 3G-SDI :1550 nm Transmitter ,1310 nm Receiver
● Simplex SC/FC/ST Connector
● Single +3.3 V Power Supply
● RoHS-6 Compliant
● 0 to 70oC Operation
● Class 1 Laser International Safety Standard IEC-60825 Compliant

Application
● SMPTE 297-2006 Compliant Electrical-to-Optical Interfaces
● High-density Video Routers

Module Outline Drawing

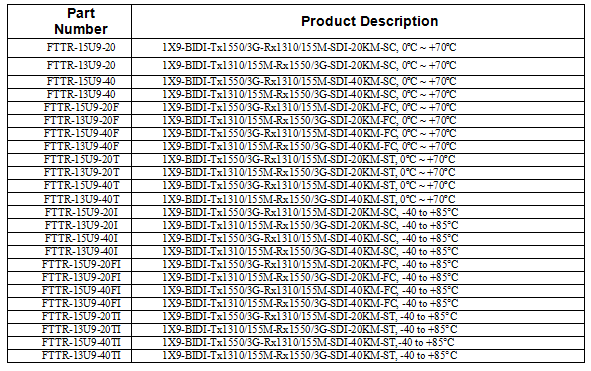

Ordering information

注：本产品有天下产化型号可选

本产品为光？？？1x9系列，，，，，仅展示部分参数，，，，，若有需要，，，，，请联系凯时娱乐。。。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
