波分复用器
阵列波导光栅
Description

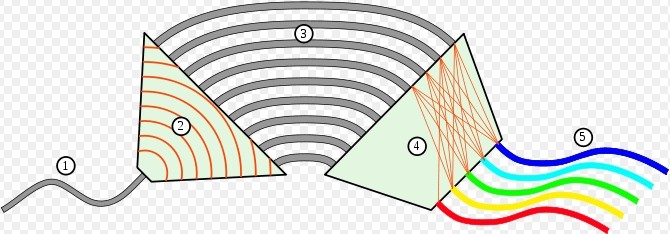

阵列波导光栅
原理历程
|
Parameter |
Unit |
Specifications |
||
|
ITU Band |
GHz |
±12.5 |
||
|
Channel Spacing |
GHz |
100 |
||
|
Number of channels |
16,32,40,48 or customize |
|||
|
Wavelength accuracy |
Max |
nm |
0.05 |
|
|
Insertion Loss |
Max |
dB |
6.0 |
|
|
-1dB passband |
Min |
nm |
0.3 |
|
|
-3dB passband |
Min |
nm |
0.5 |
|
|
Isolation |
Adjacent Channel |
Min |
dB |
25 |
|
Non-adjacent Channel |
Min |
dB |
30 |
|
|
Total Crosstalk |
Min |
dB |
23 |
|
|
Ripple in Passband |
Max |
dB |
0.75 |
|
|
Polarization Dependent Loss |
Max |
dB |
0.5 |
|
|
Uniformity |
Max |
dB |
1.5 |
|
|
Directivity |
Min |
dB |
50 |
|
|
Return Loss |
Min |
dB |
45 |
|
|
Polarization Mode Dispersion |
Max |
ps |
0.5 |
|
|
Power Handling |
Max |
mW |
300 |
|
|
Fiber Type |
Corning SMF-28 / SMF-28e or customize |
|||
|
Operating Temperature |
°C |
5~70 |
||
|
Storage Temperature |
°C |
-40~85 |
||
|
Package Dimension |
mm |
(L)120×(W)70×(H)12.7 |
||
|
19’’ Rack mount Package |
mm |
1U, (L)230×(W)440×(H)44 |
||
Notes：Specifications without fiber connectors
Related Products
粗波分复用？？ ？？？？
粗波分复用？？ ？？？？/粗波剖析复用？？ ？？？？是宽带波分复用系统中的要害器件，，，，，接纳介质膜滤光片滤波，，，，，波长稳固性好；；；接纳密封工艺封装，，，，，情形稳固性高...
粗波分复用器
CWDM粗波分复用器特征：低插入消耗，，，，，高隔离度、低偏振相关消耗、紧凑精巧设计、优越的通道一致性、事情波长规模宽：1260nm ~1620nm、事情温度规模广：-5℃~75℃、高可靠性和稳固性;
CWDM粗波分复用器应用于CWDM 系统、无源光网络PON、CATV系统
DWDM麋集波分复用？？ ？？？？
DWDM麋集波分复用？？ ？？？？槭强泶ǚ指从孟低持械囊ζ骷，，，，，接纳介质膜滤光片滤波，，，，，波长稳固性好；；；接纳密封工艺封装，，，，，情形稳固性高。。。。。。
DWDM Athermal AWG Module
DWDM Athermal Arrayed Waveguide Grating:Dense Wavelength Division Mux/Demultiplexer Athermal Arrayed Waveguide Grating(AAWG) Modules are part of a series of high performance products based on silica-on-silicon planar technology and a unique athermal packaging design requiring no electrical power, software or temperature control for a completely passive DWDM solution.
